Making temperature-salinity diagrams

You will find basic R codes

# Load necessary library
library(oce)

Warning: package 'oce' was built under R version 4.3.3

Loading required package: gsw

Warning: package 'gsw' was built under R version 4.3.3

# Create a sample dataset for temperature, salinity, and pressure
data <- data.frame(
  salinity = c(30, 32, 34, 36, 38),
  temperature = c(10, 15, 20, 25, 30),
  pressure = c(0, 5, 10, 15, 20)
)

# Convert the dataset to a ctd object
ctd_data <- as.ctd(salinity = data$salinity,
                   temperature = data$temperature,
                   pressure = data$pressure)

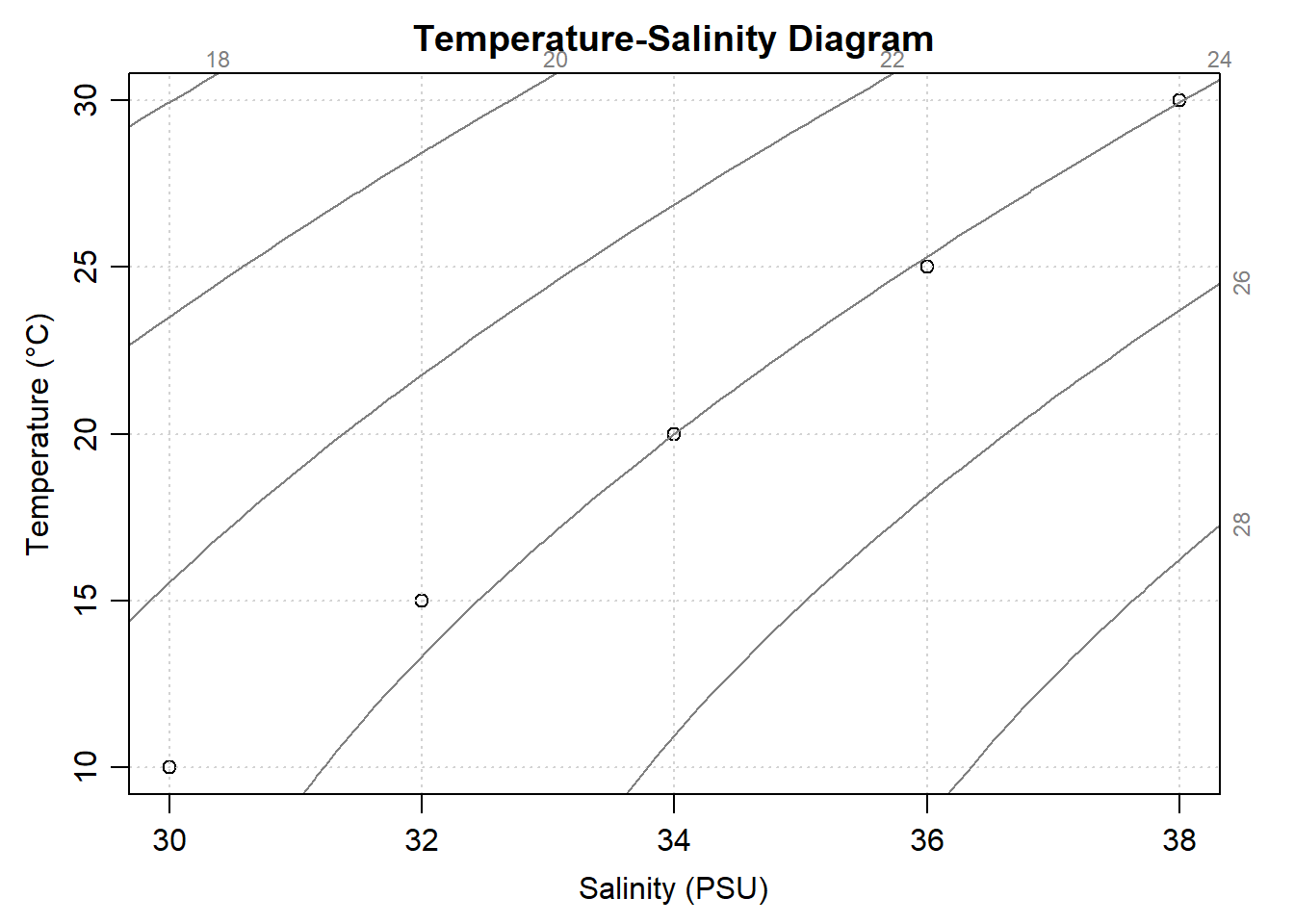

# Create a temperature-salinity diagram
plotTS(ctd_data,
       xlab = "Salinity (PSU)",
       ylab = "Temperature (°C)",
       main = "Temperature-Salinity Diagram")
